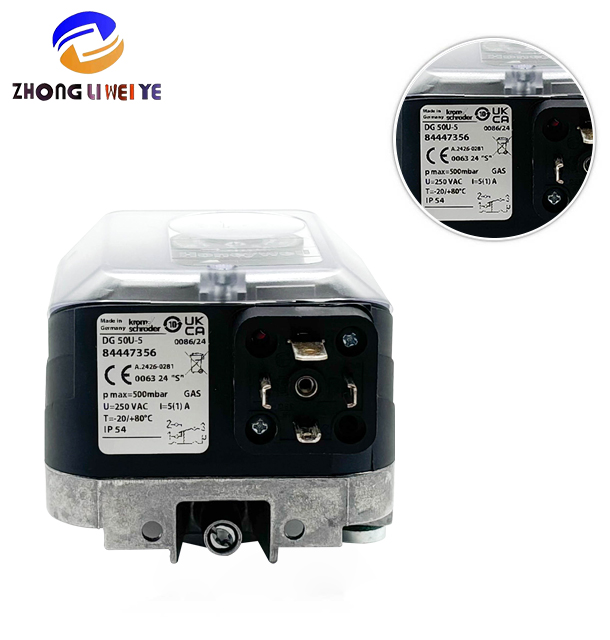

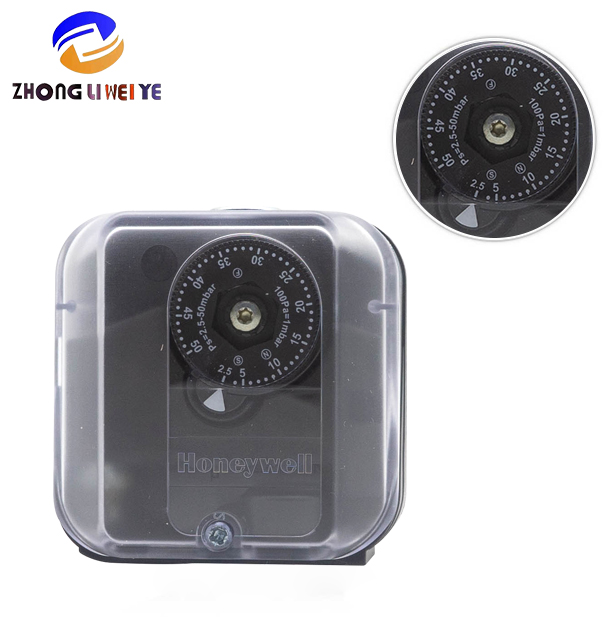

Gas Pressure Switch
Kromschroder DG50U-5
The Kromschroder DG50U-5 is a gas pressure switch from the DG50 series for monitoring gas and air pressures (including biogas). With a 2.5-50 mbar adjusting range, 4-pin plug connection and IP54/IP65 enclosure, it meets EN 1854 and provides safe lock-out on gas-pressure deviation.
2.5-50 mbar
IP54 / IP65
4-pin plug
EN 1854
Biogas capable
Why buyers choose it
- Monitors gas/air pressure for safe burner operation.
- Wide 2.5-50 mbar adjusting range.
- IP54/IP65 enclosure for industrial use.
- EN 1854 certified, biogas compatible.
Specifications
| Model | Kromschroder DG50U-5 (84447356) |
|---|---|
| Range | 2.5-50 mbar |
| Enclosure | IP54 or IP65 |
| Connection | 4-pin plug (DIN), Rp 1/4" |
| Standard | EN 1854, EU certified |
| Media | Natural/ town gas, LPG, biogas, air |
Applications
Gas and air pressure supervision on industrial burners.
Biogas and process-gas pressure monitoring.
Buyer Questions
Kromschroder DG50U-5 FAQs
What range does the Kromschroder DG50U-5 cover?
2.5-50 mbar adjusting range, per the Kromschroder-listed product page.
What protection and standard?
IP54/IP65 enclosure, EN 1854 certified, 4-pin DIN plug connection.
Can it monitor biogas?
Yes - rated for natural/town gas, LPG and biogas (max 0.1% vol. H2S).
