Burner Controller

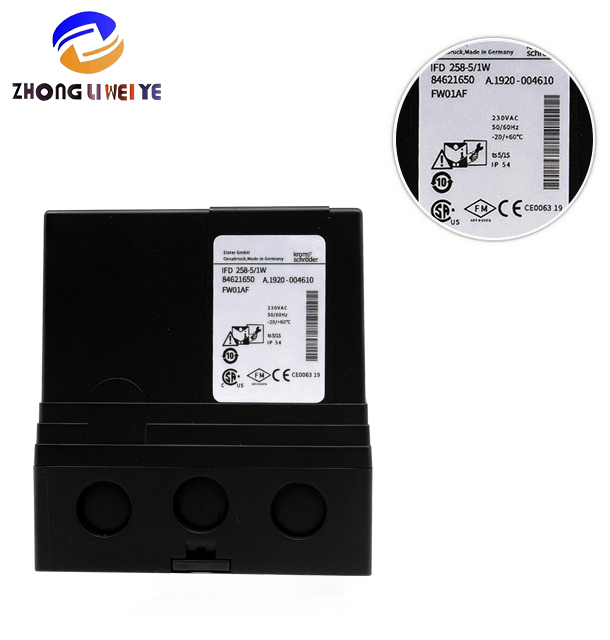

Kromschroder IFD 258-5/1W
The Kromschroder IFD 258-5/1W is a burner safety controller from the IFD 244/258 series, integrating automatic ignition and flame monitoring (UV or ionisation) for industrial gas/oil burners. Built to EN 298 with AC220V supply, IP40 housing and DIN-rail mounting, it offers local/remote reset and fault-code display.
UV + ionisation
EN 298
AC 220 V
DIN rail
IP40
Why buyers choose it
- Integrated ignition + dual-mode flame monitoring.
- EN 298 certified gas safety controller.
- DIN-rail mount, compact IP40 housing.
- Fault-code display for fast diagnosis.
Specifications
| Model | Kromschroder IFD 258-5/1W (IFD 244/258 series) |
|---|---|
| Standard | EN 298 (gas safety) |
| Supply | AC 220 V +/-10%, 50/60 Hz |
| Detection | Ionisation and UV (190-270 nm) dual mode |
| Mount | DIN rail, IP40 |
| Safety time | 10 s start / 1 s run (configurable) |
Applications
Industrial gas and oil burners, boilers.
Heat-treatment furnaces, kilns, ovens.
Buyer Questions
Kromschroder IFD 258-5/1W FAQs
What does the Kromschroder IFD 258 control?
It is a burner safety controller (IFD 244/258 series) with automatic ignition and UV/ionisation flame monitoring, built to EN 298, per the Kromschroder-listed page.
What is the supply and mounting?
AC 220 V +/-10%, DIN-rail mounted in an IP40 housing.
What flame detection does it support?
Both ionisation electrode and UV (190-270 nm) sensing, selectable per burner.
